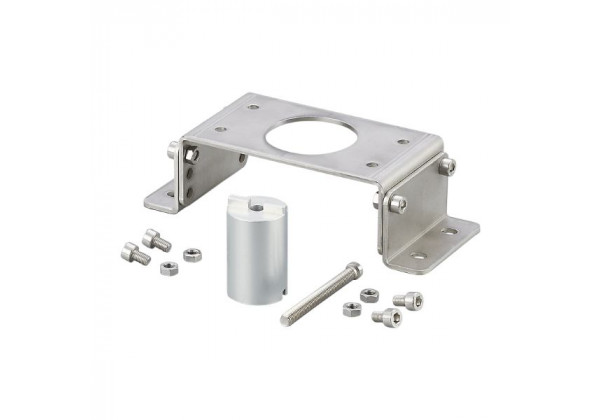

E12674 mounting bracket VALVE BRACKET 20-40MM

Производитель: IFM Electronic

Артикул: E12674

Application

Design	for mechanical interfaces to pneumatic actuators VDI / VDE 3845

Mechanical data

Weight [g]	471.5
Hole spacing for mounting bracket	80 x 30 / 130 x 30 mm
Shaft height for valve drive	20 / 30 / 40 mm
Suitable for shaft diameters [mm]	> 38
Materials	mounting bracket: stainless steel (1.4404 / 316L); shaft adapter: aluminium

Accessories

Items supplied

socket head screw: 1 x M6 x 60, stainless steel

socket head screws: 8 x M5 x 8, stainless steel

hexagon nuts: 8 x M5, stainless steel

Remarks

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12674-01 — 21.08.2019 —
