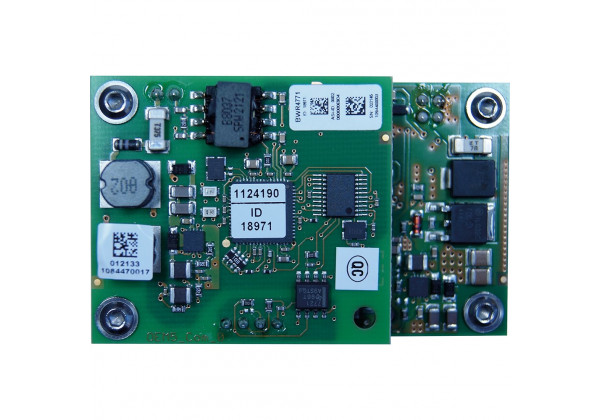

BWR4771 ASi-5 PCB Module with integrated IO-Link Master, 65 mm x 40 mm, 4 x IO-Link ports, wiring pins, straight
Производитель: Bihl+Wiedemann
Артикул: BWR4771
ASi-5 PCB module with integrated IO-Link master, 65 mm x 40 mm, 4 x IO-Link ports with configurable conectors for port class A or Port class B, sensor supply (IO-Link supply and input/output supply) out of AUX, LED, periphery connection via wiring pins, straight, ASi connection via wiring pins, straight, 1 ASi-5 address
| Number of IO-Link Ports | 4 |
| IO-Link Port Class A | configurable conectors |
| IO-Link Port Class B | configurable conectors |
| Inputs/outputs | 4 x C/Q + 4 x I/O |
| Sensor supply (IO-Link supply and input/output supply) | out of AUX |
| Flat design, installation in cable duct possible | no |
| Connection | wiring pin, straight |
| ASi connection | wiring pin, straight |
| ASi address | 1 ASi-5 address |
