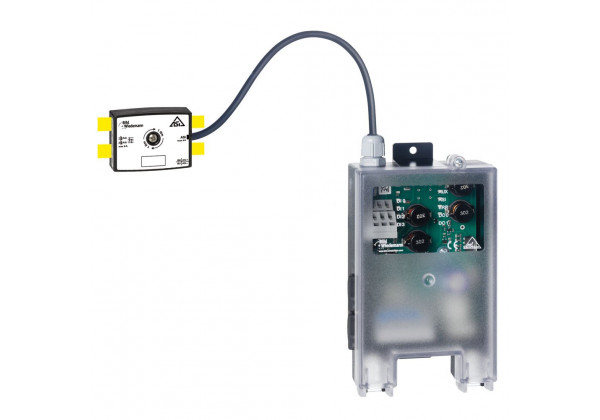

BW3005 ASi Safety Module to Control Damper Actuators (SIL)
Производитель: Bihl+Wiedemann
Артикул: BW3005
ASi Module for safe control of damper actuators up to SIL2 in IP40, for ventilation, fire and smoke dampers, 4 digital inputs, 2 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, connection to damper actuators via Belimo-compatible connectors or spring-type terminals, ASi connection via piercing technology (passive distributor) or spring-type terminals, 1 Single address
| Type | ventilation damper module, Safety |
| Inputs digital | 4 |
| Outputs digital | 2 x electronic |
| Input voltage (sensor supply) | out of ASi |
| Output voltage (actuator supply) | out of ASi |
| Protection rating | IP40 |
| Special function | Meets requirements for Germany and EU |
